Netis MW5360 detachable 4G LTE,N300 CPE-4 antennas, 1WAN + 2 LAN+1 SIM5

Opis proizvoda

4G LTE Router With Detachable 4G Antennas

The Netis 4G LTE router MW5360 is equipped with a 4G LTE module, which allows you to access the Internet with a SIM card. With the separate WiFi antenna systems and unique detachable 4G antenna ports design, it allows you to put the 4G antennas anywhere inside or outside of your house, which brings you a better 4G speed and better WiFi performance. MW5360 also offers a wired WAN port to be used as a common wireless router.


• Plug & play, access the internet without any setting
• Wide Band for LTE, fit for most ISPs
• Multi-access, 4G LTE and Wired access available
• Works seamlessly with all 802.11a/b/g/n devices
• Simultaneous 2.4GHz 300Mbps

• 2* 5dBi high gain WiFi antennas and 2*5dBi detachable 4G antennas

• Easy wireless security setup at a push of the WPS button
• Intelligent bandwidth control to manage the bandwidth usage for each computer
reasonably
• Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
• Quick setup, with built-in multilingual management page

Wireless
Standards IEEE 802.11b/g/n 2.4GHz
Signal Rate Up to 300Mbps 2.4GHz
Frequency Range 2.4-2.4835GHz;
Transmit Power 20dBm(MAX)
Data Transfer Rate
802.11n:
40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
802.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Mode AP/APR, Multi-SSID
Wireless Security None / WEP /WPA-PSK/WPA2-PSK (TKIP/AES)
4G LTE
Band for LTE

FDD-LTE:B1/B3/B5/B8
TDD-LTE: B38/B39/B40/B41
HSPA/UMTS:B1/B5/B8
GSM/GPRS/EDGE:B3/B8
TD-SCDMA:B34/B39
EVDO/CDMA:BC0
Mode
FDD-LTE?TDD-LTE?TD-SCDMA?HSPA+?HSUPA
HSDPA?UMTS?EVDO?EDGE?GPRS?GSM?CDMA1x
Card Speed
FDD-LTE: 150 Mbps DL, 50 Mbps UL
TDD-LTE: 132 Mbps DL, 30 Mbps UL
TD-HSUPA:2.8Mbps DL
TD-HSUPA:2.2Mbps UL
DC-HSPA+:42 Mbps DL
HSPA+:21 Mbps DL
HSUPA:5.76Mbps UL
WCDMA: 384 Kbps DL, 384Kbps UL
CDMA2000 EVDO: 3.1Mbps DL, 1.8Mbps UL
EDGE: 237 Kbps DL, 118Kbps UL
Hardware
Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

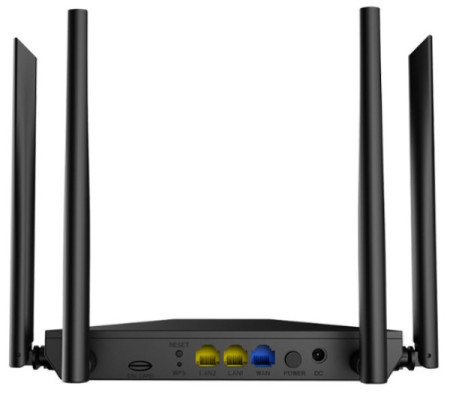

Interface

1*10/100Mbps Auto MDI/MDIX RJ45 WAN port
2*10/100Mbps Auto MDI/MDIX RJ45 LAN port
SIM card slot

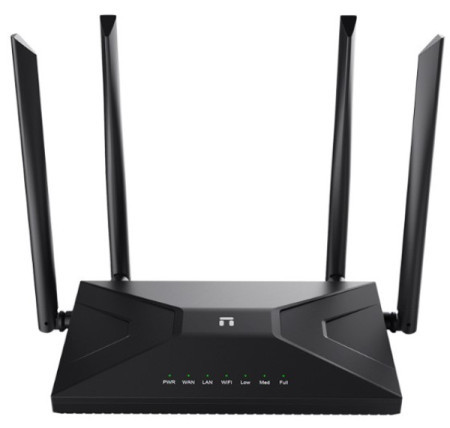

LED Indicators
Power, LAN All, WiFi/WPS,EWAN, LTE Strong, LTE Middle, LTE
Weak
Buttons
Default, WPS
Antenna
2* 5dBi WiFi antennas, 2 SMA detachable 4G antennas
Power Supply

DC 12V/1.0A(Output)
Dimensions
(L x W x H )

182mm*108mm*25mm
WAN Type
WAN: DHCP / Static IP / PPPoE / Russia PPPoE / L2TP / PPTP /
3G&4G
Others

Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,
VPN Pass-through, Dynamic DNS, Static Routing
Others
Certification FCC, CE, EAC
Environment
Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package
1* MW5360
1* 12V/1A Power Adapter
1* Quick Installation Guide (Multilingual)
